Description
Product Overview
Assembled in the US with foreign and domestic parts

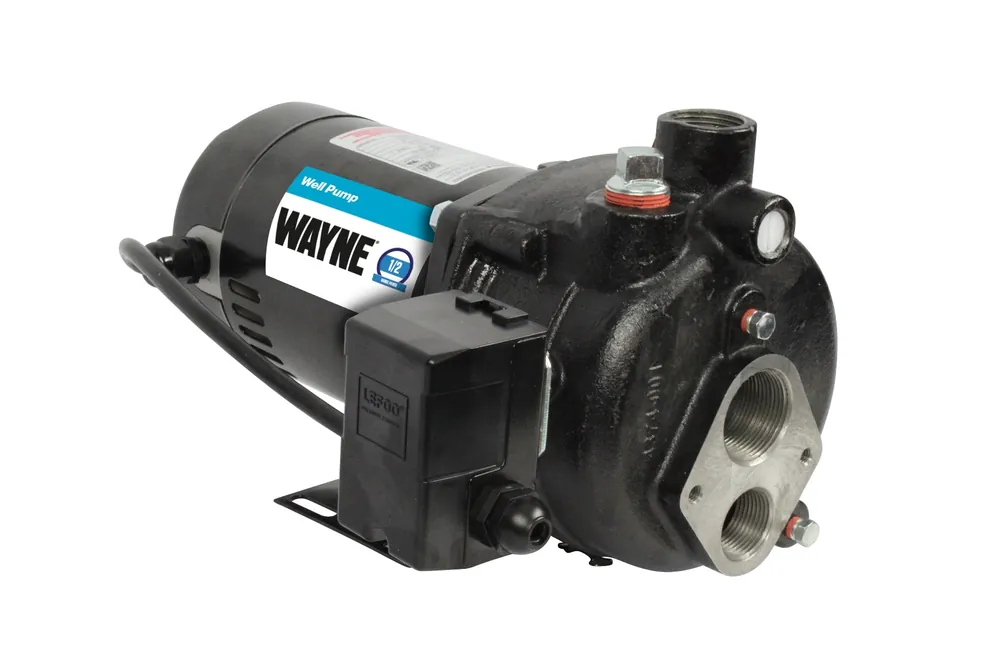

1/2 HP; max. flow rate is 408 Gallons Per Hour; (50 PSI)
1 in. NPT discharge with 1-1/4 in. NPT suction and 1 in. drive
Dual voltage (120V/240V) high efficiency square flange motor (factory set for 240V)
Pressure switch is pre-set at 30-50 PSI for automatic operation
Durable cast iron volute with dedicated priming port for volute filling
For wells 0 – 80 ft. in depth
Jet assembly required (sold separately)
3 year warranty
Performance
|
PSI |
0′ |
5′ |
10′ |
15′ |
20′ |
25′ |
30′ |
40′ |
50′ |
60′ |
70′ |
80′ |
90′ |
|
30 |
900 |
828 |
780 |
732 |
690 |
630 |
570 |
456 |
348 |
270 |
180 |
90 |
– |
|
40 |
660 |
618 |
570 |
510 |
450 |
408 |
348 |
270 |
180 |
90 |
– |
– |
– |
|
50 |
408 |
348 |
300 |
270 |
210 |
180 |
90 |
– |
– |
– |
– |
– |
– |
Specifications
| SKU | 63750148 |
|---|---|
| Farm & Ag Type | Well Pumps |
| UPC | 040066105790 |
| Fulfillment Location | Online, Pickup at Store |
| Manufacturer Number | CWS-50 |
| Brands | Wayne Pump |
